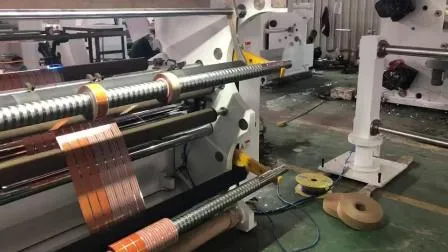

Servo Motor Controlled High Speed Slitting Machine (Btm-C1300)

Basic Info

Model NO.	BTM-C1300
After-sales Service	Forever
Warranty	1
Application	Mechinery&Hardware
Type	High-Speed Slitting Machine
Work Method	Flat Knife Slitting
Structure	Cutting Part
Packaging	Film
Classification	Slitting Machine
Suitable Substrates	Film Cutting
Packaging Material	Plastic
Slitting Speed	High Speed 400m/Min
Controller System	PLC Automatic
Certifiate	ISO, Ce. SGS
Specification	1300/1400/1600
Trademark	SANBI
Origin	China
Production Capacity	400m/Min Speed

Product Description

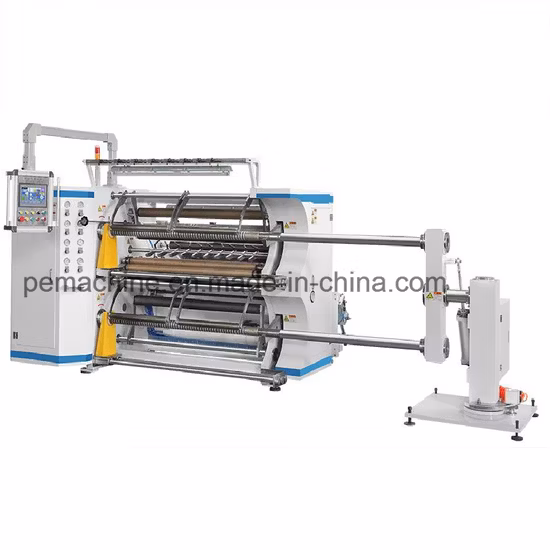

BTM-C1300 SERVO MOTOR CONTROLLED HIGH SPEED SLITTING MACHINE



Uses:
The machine applies to slit cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film roll, aluminum foil roll, and craft paper, copy paper, adhesive paper, fabric, laminated, coated materials etc. All kinds film and paper printing of various materials, etc.
Main mechanical configuration:

1. Entire machine's controlled by PLC, man-machine interface touch screen operation.
2. Unwind adopts Taiwan magnetic powder brake, material's constant tension control is automatically calculated by PLC through the diameter's change.
3. Traction rollers are driven by 1 servo motor. Achieve constant linear velocity control and effectively cut off rewind and unwind tension's intervened.
4. Rewind adopts 1PC servo motor (optional is 2PCS), automatic tension is from PLC's calculating.
5. Equipped with automatic rewind material's pushing by robot arm.
6. Unwind lift adopts hydraulic & pneumatic auto loading which can save much labor force and shorten time.
7. EPC&LPC makes material's slitting edge smooth and accurate.
8. The feature of machine is stable, security, efficient etc.

Jumbo roll width	1300mm
Diameter of roll	800mm
Diameter of rewinding	600mm
Inner dia. Of paper core	3''or 76mm
Mechanical Slitting speed	10-400m/min
Tolerance of EPC	≤0.1mm
Min. Width of produce	50mm
Total power	15KW
Weight	5500Kg
Overall dimension (L x W x H)	2400mm×4800mm×2130mm
