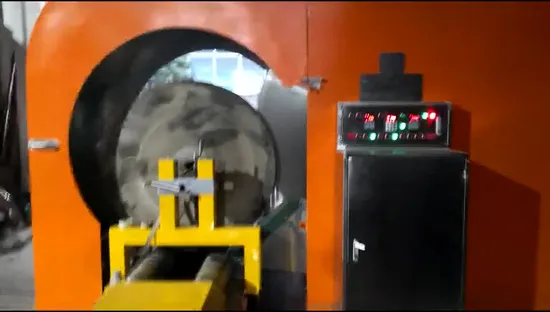

Reliable Performance Paper Machinery Circular Cutting Saw Blade Paper Machine
Basic Info
| Nameproduct Name | Reel Paper Cutter Roll Saw Slitting Machine |
| Color | Optional |
| Package | Wooden Cases |
| Size of Machine:(L*W*H) | 4000mm*2200mm*2500mm |
| Voltage | 380V(Standard), Other Voltage Need Customize |
| Frequency | 50-60Hz Can Customize |
| Total Power | 43kw |
| Main Motor Power | 22kw |
| Weight | 4.15t |
| Transport Package | Plastic Film and Wooden Box |
| Specification | XLII |
| Trademark | XINGLONG |
| Origin | China |
| HS Code | 8443139000 |
| Production Capacity | 200 Per Year |
Product Description
Reliable performance Paper machinery circular cutting saw blade Paper machine
Product description
This paper roll slitting machine is widely used in paper mill, packaging, and printing factory. It looks the same as a normal sitter, but no need rewinder, which saves time. It can be used for cutting different width paper rolls ,This electric paper cutter machine can cut the paper rolls which is soaked, wormed, bigger or special specification according to customer demands, also including the kraft paper, corrugated paper, white card, etc.
| Model | XLII |
| Paper Width | Between 3cm and 2.8m |
| Paper DIA | Between 35cm to 1.35m |
| Time-consuming | It'll take 5min to cut 1.25m DIA and 140g Kraft cardboard, time-consuming conversely to weight. 6 rolls can be cut per hour on average. |
| cutting dia | 450-1350mm |
| max cutting length | 3000mm |
| Alloy steel saw head: | Taiwan |
| Saw style model: | 1750mm*10.5mm Imported tungsten steel saw head |
| Size of machine:(L*W*H) | 4000mm*2200mm*2500mm |
| Voltage | 380V(standard), other voltage need customize; |
| Frequency | 50-60HZ can customize |
| Total Power | 43KW |
| Main Motor Power | 22KW |
| Weight | 4.15T |
FAQ
1.
Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2.
Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3.
Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4.
Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
