Automatic High Speed Jumbo Roll Paper Slitting Machine Application This type automatic slitting machine is suitable for
Basic Info
Model NO. FQ-1600
Suitable Substrates Paper
Packaging Material Wood
Automatic Grade Automatic
Main Function Slitting and Rewinding
Speed 150-300m/Min
Voltage 380V
PLC Yes
Touch Screen Yes
Transport Package Wooden Box
Specification 3900x1700x1250mm
Trademark SANWIN
Origin Ruian, Zhejiang
HS Code 8441100000
Production Capacity 500 Sets/Year
Product Description

Automatic High Speed Jumbo Roll Paper Slitting Machine

High Speed Automatic Label Non Woven Fabric Plastic Film PE BOPP CPP Pet PVC Aluminum Foil Jumbo Roll Paper Cup Paper Slitting Machine


Application This type automatic slitting machine is suitable for slitting wide roll BOPP,PET, Non woven fabric ,Paper etc .according to production let roll material slitting, scrap waste side. The structure of the complete machine is compact, fast with high efficiency, easy and stead operation

Feature1. This machine install a round knife device, it can slit the rolls paper within 350g/ .2. Independent master control screen, more flexible and even easier operation.3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material. 4. Releasing tension adopts magnetic powder clutch control. 5. Rolling adopts magnetic clutch control. 6. Automatic slitter edge blowing-inhaling device. 7. Automatic meter counting of material moving length.Main Technical Parameter

Unwind Width

1600mm

Unwind Diameter

φ1000mm

Rewind Diameter

φ1000mm

Working Speed

0-300meters/min

Mini Slitting Width

50mm

Speed regulation

By Inverter(5.5kw)

Material Loading Device

Airshaftφ3inch

Loading Type

Pneumatic

Rewinding Type(2 PCS)

Air Inflation Shaft

Power Supply

380V/3Phase/50Hz

Measurement

3000*1700*1550mm

Weight

3200kgs

Total Power

8kw

Inverter

5.5KW

Main Motor

5.5

PLC CONTROL

Simens

Touch Screen

China

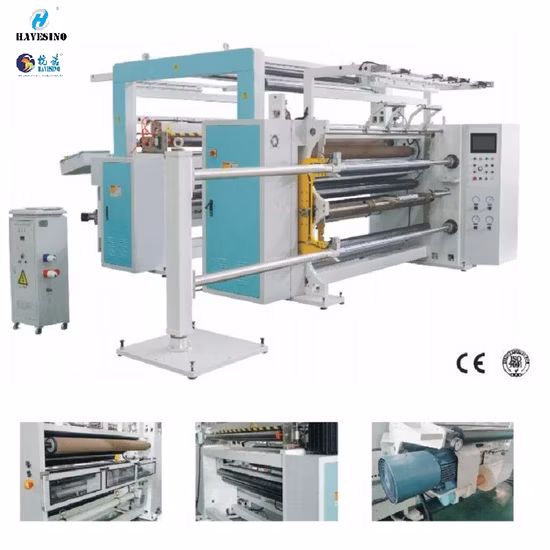

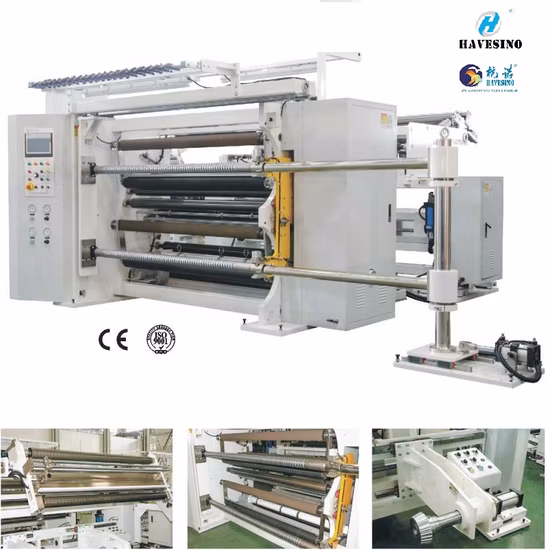

1.Unwinding unit (Auto load material )2.Cutting Knives 3.Rewinding Part4.Touch Screen +PLC
